350 Hp Motor Full Load Amps

230 volts motor - 3-phase. The actual motor amps may be higher or lower than the average values listed above.

350 Hp Electric Motor 1800 Rpm 3 Phase 587uz 460v Pe587uz 350 4c

3 Phase 60 hz Motor Full Load Amps Locked Rotor Current Estimate --Select HP-- 05 hp 075 hp 1 hp 15 hp 2 hp 3 hp 5 hp 75 hp 10 hp 15 hp 20 hp 25 hp 30 hp 40 hp 50 hp 60 hp 75 hp 100 hp 125 hp 150 hp 200 hp 250 hp 300 hp 350 hp 400 hp 450 hp 500 hp --Select Voltage-- 200 VAC 208 VAC 230 VAC 460 VAC 575 VAC 2300 VAC 4000 VAC.

. 33 rows FULL LOAD AMPS FOR AC MOTORS. - in the calculator above FLA is RLA 25. 1785 RPM 4000 Volts 747 Amps 3 Phase 60 Hz 115 Service Factor TEFC Encl AEHG-XW Type 5011B Frame Weight 4860 lbs Dims 78Lx37Wx44H.

7 312 AWG112 GND. Full load amps from Tables 430247 through 430250 are provided in Column 2. The tables are based on motors of approximately 1450rpm of average efficiency and power factor.

A motor of a given rated horsepower is expected to deliver that quantity of mechanical power at the motor shaft. Column 3 Various fuse types are listed in Column 3. 3PH Motors FLA typical full load amps Full-Load- Amps.

For 230VAC 1 phase 60hz electric motors divide the following values by 2. 1 hp 0745 kW. Written on the motor nameplate first if it is available.

Full Load Amps 3940. For more reliable motor. 21 310 AWG1.

Related Mobile Apps from The Engineering ToolBox. The formula you are looking for is. The breaker must be sized for 76 125 10 Amps.

14 310 AWG112 GND. 27 rows Look at the table the 1 hp motor takes will be 13 A at 440 Volts three-phase at the same time while using single-phase it takes only 38 Amps. Amps Horsepower 746 Efficiency Volts.

Usable 200V No. 240v 480v 600v 025 116 058 045 016 080 040 032 014 072 036 029 016 080 040 036 011 064 032 026 850 011 072 036 032 1740 1125 ELECTRIC MOTOR FULL LOAD AMP Van der Graaf Drum Motors 012010 Page 1. Converting horsepower to amps can be done in a few simple steps or using this simple formula.

The motor full load current forms the basis for the selection of all these equipment. Also 5 HP three-phase motor takes 64 Amps. The tables below are intended to be a general guide for AC motor Full Load Amperes.

For example the full-load current of a 5 HP motor at 460V is 76 Amps. 460 volts motor - 3-phase. Usable 208V Yes.

3-Phase AC Motor FLA. Motor Rating Cicuit Size Fuse Size Full Load Amps Copper Wire Size Volts HP KW 12 10 8 6 4 2 0 00 000 0000 250 300 350 400 500 600 120 1ø 14 20 10 58 0186 291 464 692 1171 1863 2350 3737 4715 5942 7492 13 20 10 72 0246 230 365 546 924 1471 2338 3721 4691 5914 7457 8811 12 20 15 98 0373 171 272 407 689 1096 1742 2773 3495 4406 5556 6565. Single-Phase Motors - HP and Full-Load Currents.

The conductors are to be copper with THWN insulation and 6005 current transformers are used to reduce the current supplied to the overload heaters. The LPJ_SP is a 600Vac 0 - 600 amp time-delay Class J Low-Peak fuse with a 300000 amp interrupting rating. Motors - Horsepower and Amps of 120VAC 1 Phase 60hz Electric Motors.

Motors - AC VFD Drive 3 Phase Power Training About 90 Marketing April 1 2017. Motors built for especially low speeds or high torques may have higher full-load currents and multi-speed motors will have full-load currents varying with speed. A 350-HP squirrel-cage induction motor is connected to a 480-volts three-phase feeder.

These are only intended to be guidelines and in all cases the full load amps of the motor nameplate should be used for final calculations. Motors of higher speed usually take a lower current than that shown in the table. Amps HP x 746173 x Volts x eff x pf.

FLA - Full Load Amps - amount of current drawn when full-load torque and horsepower is reached for the motorFLA is usually determined in laboratory testsNote. In practically the current rating may change and which is based in the manufactured standard as well as the what grade copper they are using to winding the motor. Example if you have 100 hp multiply by 746 and you get 74600.

AC Motors full load current tables 1450rpm approx provided as a guide to the selection of suitable MEM control gear. Multiply the AC voltage by the motor efficiency the power factor and the square root of 3. Continue reading to see how this formula was derived.

HP 350 Service factor 110 Full-load amps 408 NEMA Code B. PLC Training Products Lessons Contact. While motors of lower speed usually take.

Convert Horsepower to Watts. The nameplate lists the following. Enter the motor rated voltage in volts V Enter the motor power rating and select the appropriate unit HP or kW Enter the power factor and efficiency of the.

RLA - Running Load Amps - current drawn during normal operation of electric motor. Therefore it is good practice to size the breaker at 15 Amps. Always check nameplate information before designing protective devices wiring and switch gear.

Here are the typical Full Load Amps FLA for 220VAC and 120VAC 1 phase 60hz electric motors. The first step to convert HP to amps is. 29 rows Branch circuits that contain two or more motors must have wire in which the.

HP Full Load Amps at. Motor Service Factor 115. Motor Enclosure Design Totally Enclosed Fan-Cooled.

350 x746173 x 480 x 90 x 90 261100672 389 amps. In these cases the nameplate current ratings shall be used. For single-phase motors when kW is known.

How to convert Hp to Amp AC 3 phases in only 3 step. Unused Surplus 350 HP Horizontal Electric Motor Teco Westinghouse Unused Teco 350 HP electric motor with following features. This motor full-load amperage FLA calculator allows you to calculate the full-load current of the AC electric motor.

Motor horsepower ratings are listed in Column 1. The appropriate selection of fuses circuit breakers overload relay cables and other switchgear is necessary to protect the motor from damages. Select the number of phases from the drop-down list.

A heater is a device that protects a motor from thermal overloads due to excess current in the windings. Motor FLC calculation For single phase AC motors. Always use the FLA.

Multiply Hp Horsepower by 746.

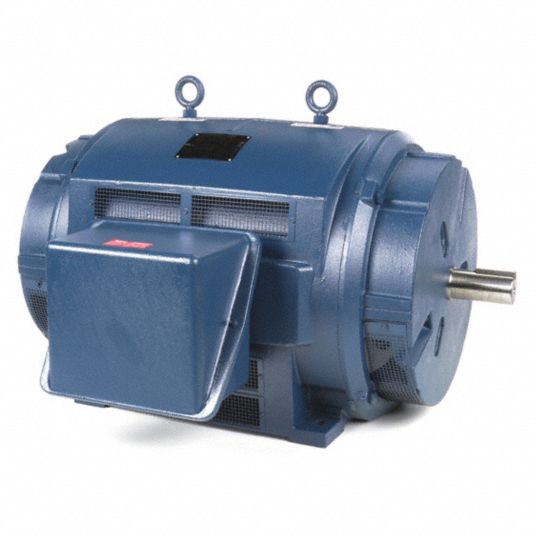

Marathon Motors General Purpose Motor Open Dripproof Rigid Base Mount 350 Hp 3 570 Nameplate Rpm 44z249 447tstdcd6003 Grainger
